Intel Desktop Board DH61AG Product Guide

NOTE

If you install a wireless card in the PCI Express Half-Mini Card slot, the external

antenna(s) can be connected through the standard-size I/O shield by removing the

cut-outs above the shield’s back panel I/O section.

Connecting to the Internal Headers and

Connectors

Before connecting cables to any of the internal headers and connectors, observe the

precautions in “Before You Begin” on page 15. Figure 16 shows the location of the

internal headers and

connectors on Intel Desktop Board DH61AG.

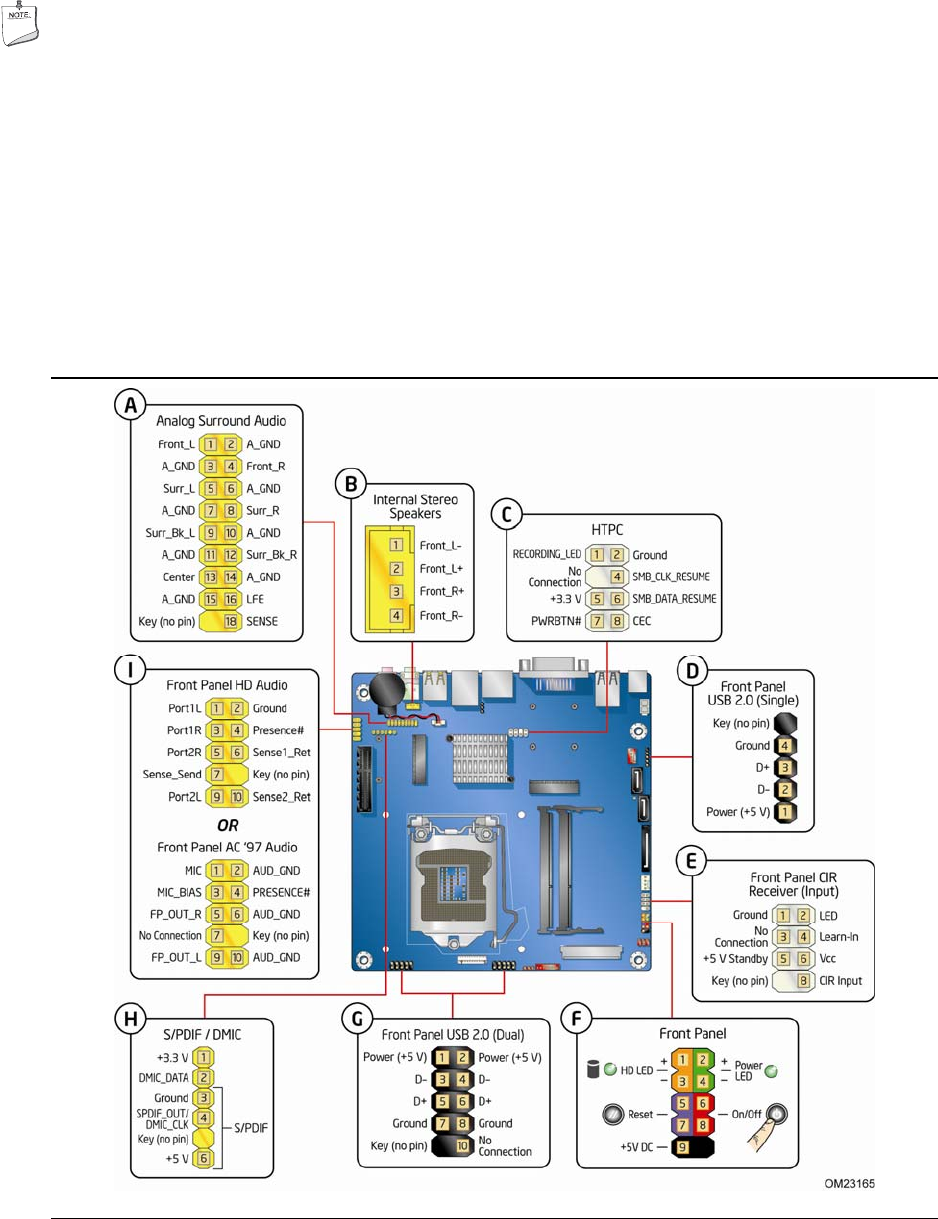

Figure 16. Internal Headers and Connectors
