Intel Desktop Board DX58SO2 Product Guide

Setting the BIOS Configuration Jumper

NOTE

Always turn off the power to the computer before moving the jumper. Moving the

jumper with the power on may result in unreliable computer operation.

Figure 27 shows the location of the Desktop Board’s BIOS confi

guration jumper block.

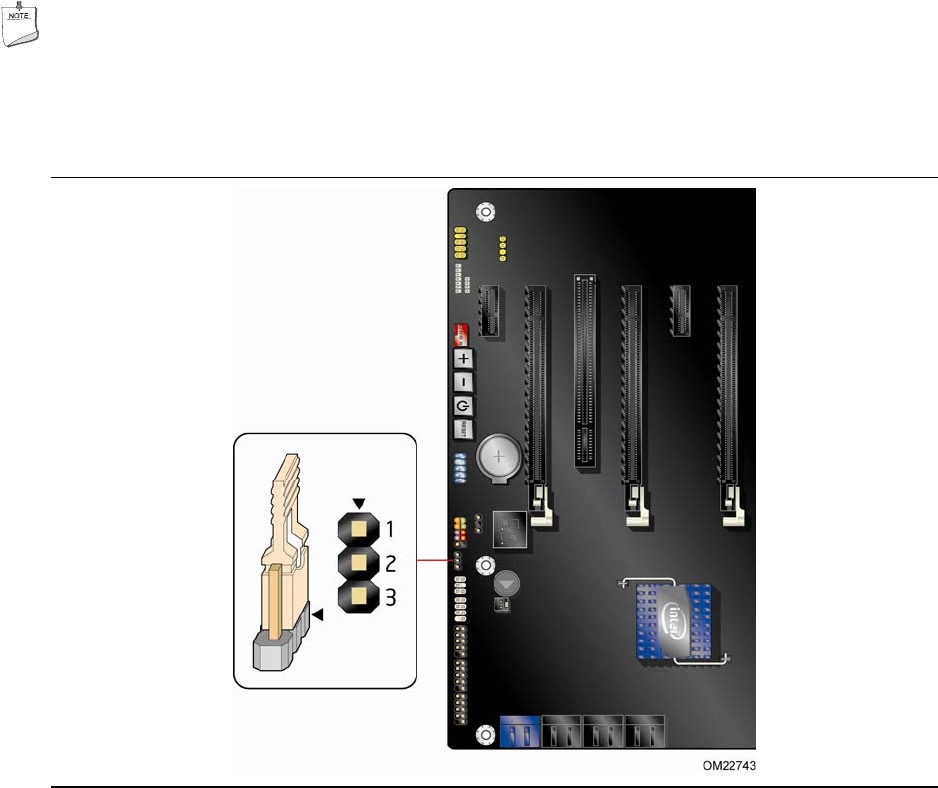

Figure 27. Location of the BIOS Configuration Jumper Block

The three-pin BIOS jumper block enables all board configurations to be done in the

BIOS Setup program. Table 14 shows the jumper setti

ngs for the BIOS Setup

program modes.
