Solid-State Drive DC P3600 Series

October 2014 Product Specification

330569-004US 43

Appendix F Add-in Card LED Decoder

Table 37: LED Functionality

LED

Description

Blink Behavior

LED 1( Amber)

Shows IO activity

Blinks at the rate of

250msec high, 250msec low

with IO activity

LED 2 (Red)

Drive fail indicator

Solid red if drive is in

disabled logical mode

LED 3 (Yellow)

Drive pre-fail indicator

Solid yellow if any of the

critical warnings in log page

0x02 is triggered

LED 4 (Green)

Drive health indicator

Solid green when drive is

healthy

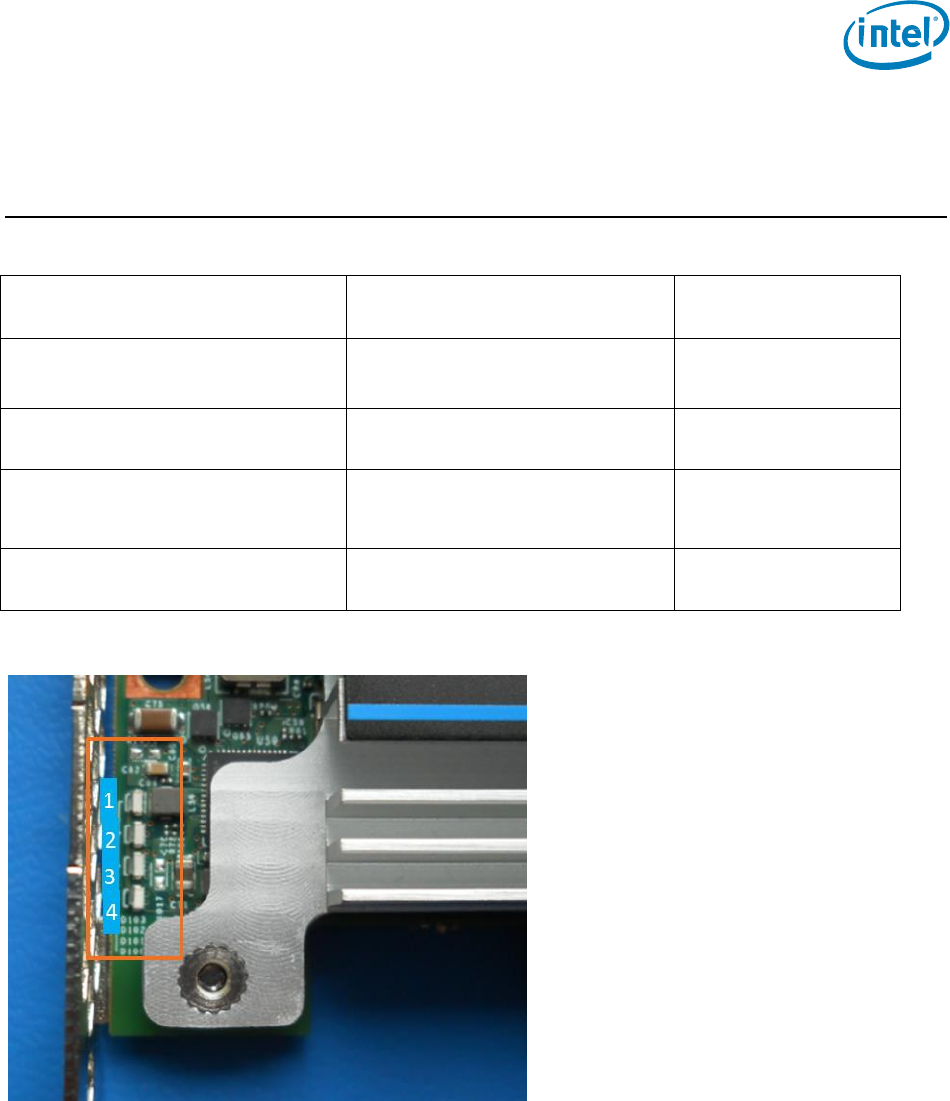

Figure A-1 LED Location

NOTE: 2.5-inch Form factor does not contain LEDs

§
