120 Working Inside the System
Installing the Peripheral Bay Backplane
See Figure 37.
1. Remove the board from its protective wrapper.
2. Position and align the board over the two alignment pins.
3. Attach the eight screws removed earlier.
4. Connect the diskette and CD-ROM power and data cables to their connectors on the backplane.
5. Install the peripheral bay in the chassis (see “Installing the Peripheral Bay” on page 118).
6. Install SCSI drives (see “Hot-Swapping a SCSI Hard Drive” on page 84).
OM07503
A B EDC
H FG

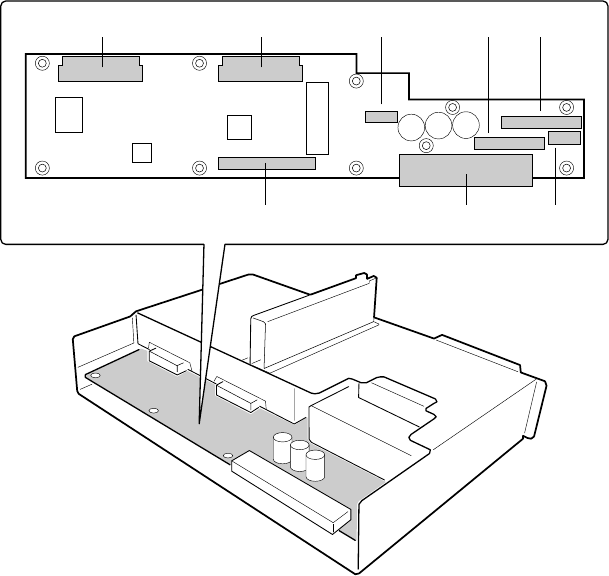

Figure 37. Peripheral Bay Backplane
A. Hot-swap hard disk drive connector
B. Hot-swap hard disk drive connector
C. Power connector
D. Diskette drive data connector
E. CD-ROM drive data connector
F. Dual CD-ROM/diskette drive power connector
G. Blind mate board connector
H. SCSI cable connector
