PENTIUM® PROCESSOR WITH MMX™ TECHNOLOGY E

5/23/97 10:47 AM 24318502.DOC

INTEL CONFIDENTIAL

(until publication date)

Tt = t40, Tu = t41, Tv = t37, T w =t42, t43a, t43c, t87, Tx = t43b, t43d, t43f, t88, Ty = t38, t39, Tz = t36

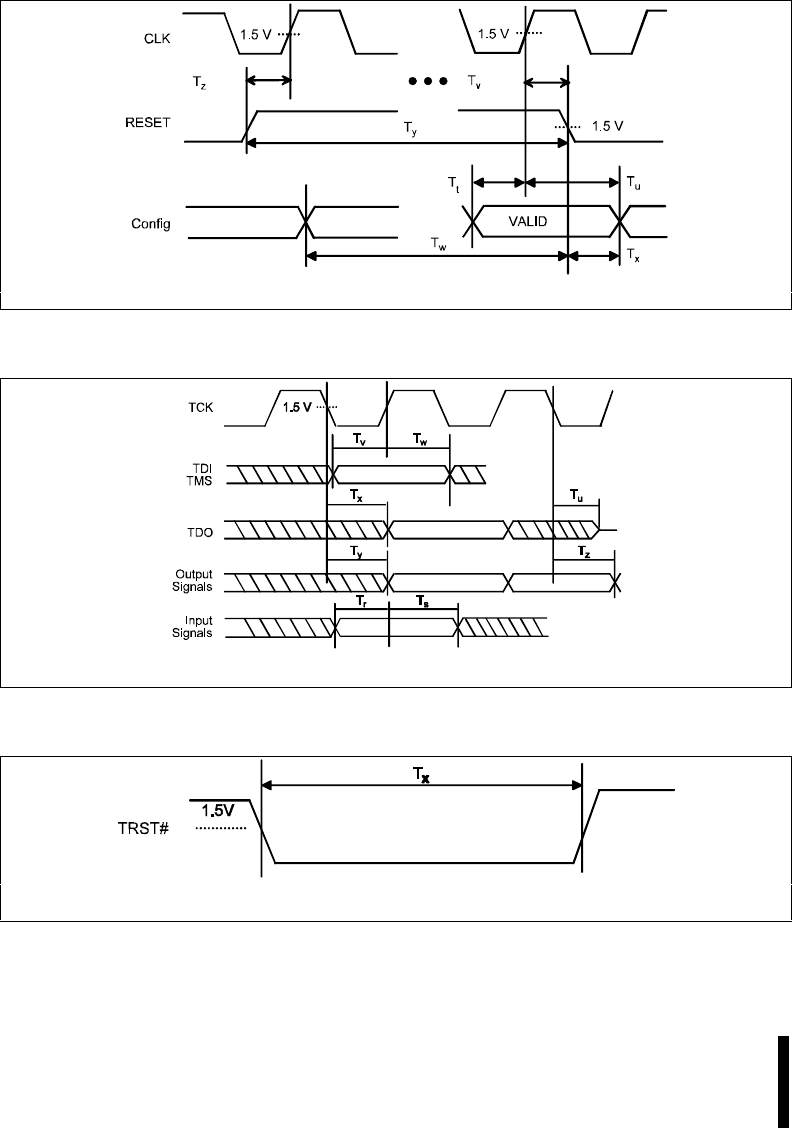

Figure 8. Reset and Configuration Timings

Tr = t57, Ts = t58, Tu = t54, Tv = t51, Tw = t52, Tx = t53, Ty = t55, Tz = t56

Figure 9. Test Timings

Tx = t50

Figure 10. Test Reset Timings
